Android System 安卓系统

> This tab focuses on device lifecycle management, from app installation and hardware binding to specific dining mode and operating hour configurations. 本标签页专注于设备的生命周期管理，从应用程序的安装下载、硬件绑定到具体的就餐模式与营业时段配置。

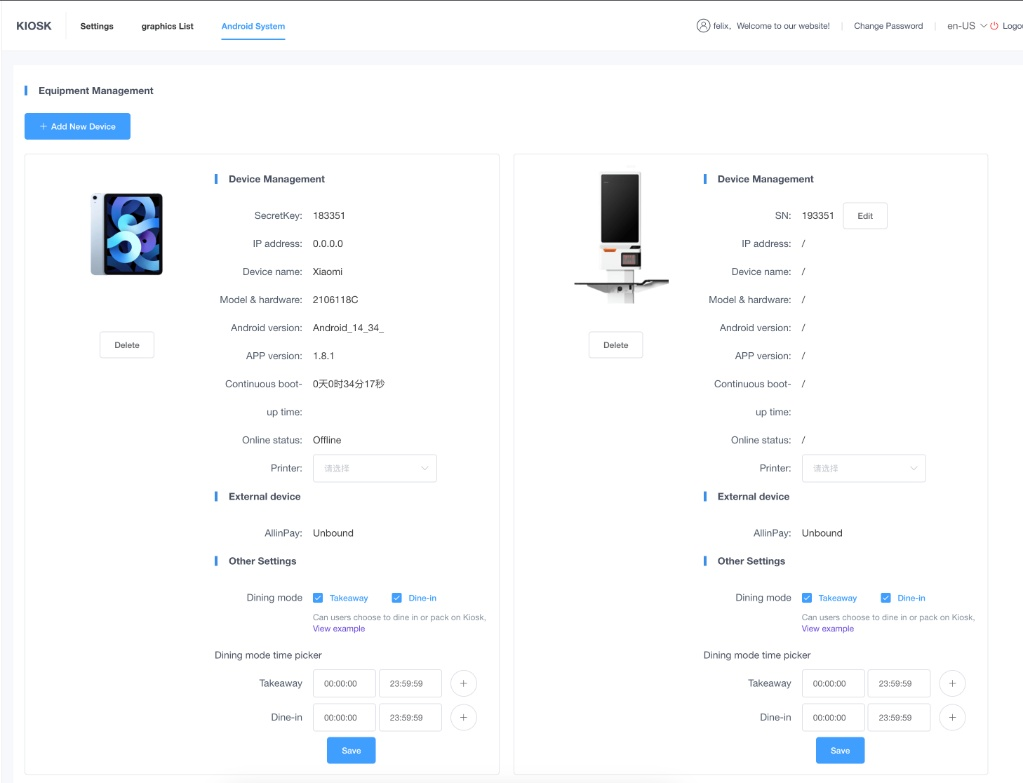

#### Equipment Management 设备管理
![](/media/202604/2026-04-10_150722_1883690.8472625149754434.png)

* **POS Location (POS 位置)**: The self-service ordering application installed on the physical KIOSK machine or Pad, and its associated backend profile. 指安装在物理 KIOSK 机器或 Pad 上的自助点餐应用程序及其关联的后台档案。
* **POS Effect (前端效果)**: Configurations here determine whether the device can connect to the network, which printer it uses, and which dining modes are displayed to customers on the interface. 此处的配置决定了该台设备能否成功联网、连接哪台打印机，以及在界面上向顾客展示何种就餐方式。

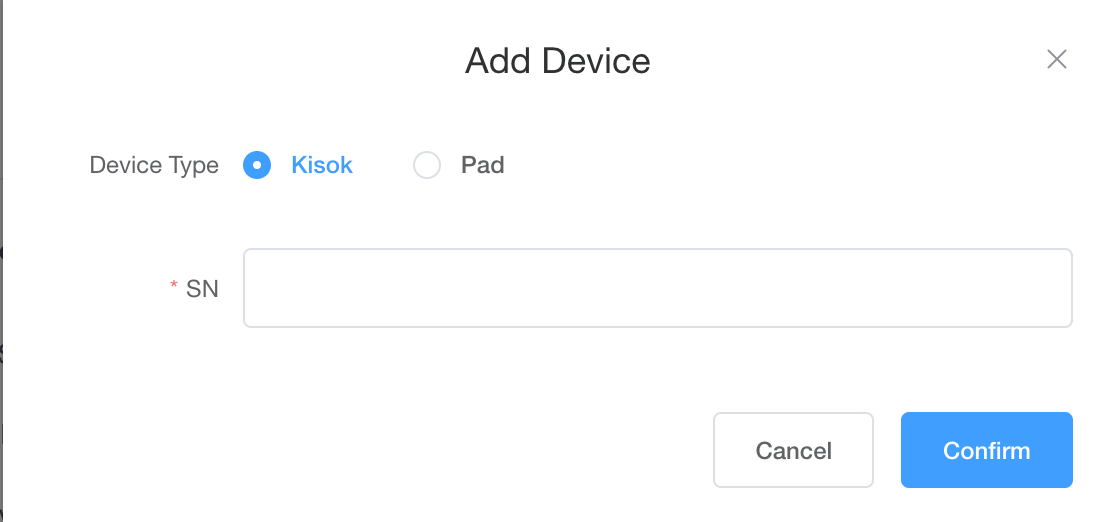

* **Add New Device / 添加设备**
 * **Description (配置含义)**: The critical step to authorize and bind the physical hardware to the cloud system. 将物理机具授权并绑定到云端系统的关键步骤。
 * **Effect (具体表现)**:
 * **For KIOSK**: The physical Serial Number (SN) of the machine must be entered for binding. It is recommended to download the KIOSK app from the App Store; if unavailable, use the provided download link. **KISOK 类型**：必须输入机身的物理序列号（SN）进行绑定。安装时建议优先从应用商店下载 KIOSK 应用；如商店内搜索不到，可使用系统提供的下载链接。
 * **For Pad**: No SN is required; the system generates a **SecretKey** upon confirmation. The Pad app must be downloaded via a dedicated link, and the key is entered after installation to complete binding. **Pad 类型**：无需 SN，点击确认后系统会生成 **SecretKey (密钥)**。Pad 应用需通过专属链接下载，安装后输入该密钥即可完成绑定。
![](/media/202604/2026-04-10_150919_0713130.5587881953723183.png)

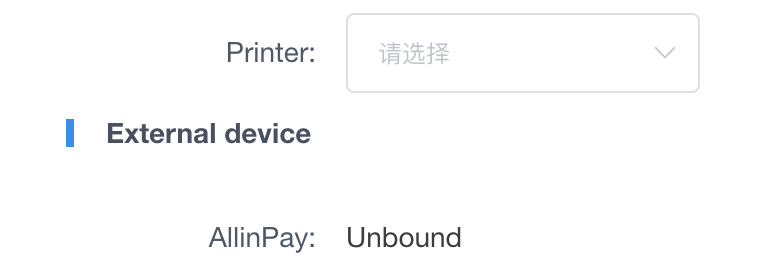

* **Printer & External device / 打印机与外接设备**
 * **Description (配置含义)**: Assigns external hardware to a specific terminal. 为特定终端指定外接硬件。
 * **Effect (具体表现)**: After selecting an associated printer here, orders from this machine will only print from the specified printer. It also monitors the binding status of third-party payment terminals like AllinPay. 在此处选择关联的打印机后，该台机器处理的订单将仅从指定的打印机出单。同时可监控 AllinPay 等第三方刷卡机具的绑定状态。
![](/media/202604/2026-04-10_151033_7066820.8205288608354319.png)

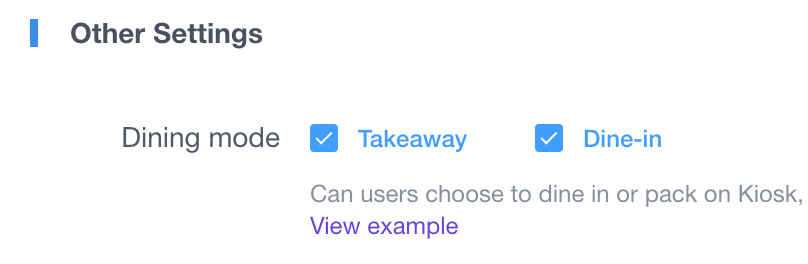

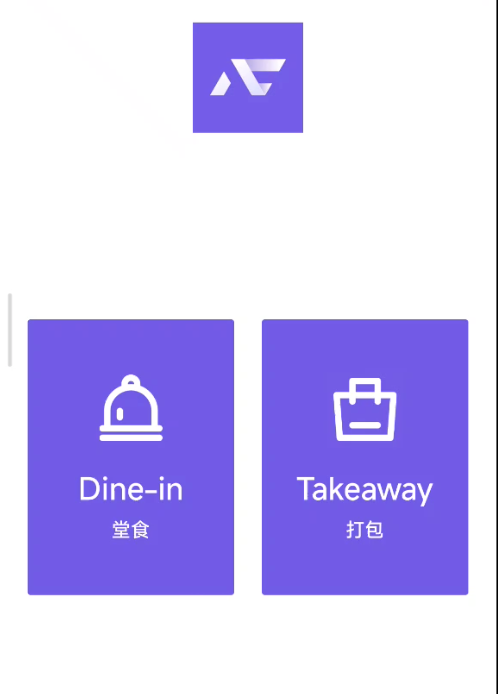

* **Dining mode / 就餐模式**
 * **Description (配置含义)**: Controls the first selection step after the KIOSK welcome screen. 控制 KIOSK 欢迎页后的首个选择步骤。
 * **Effect (具体表现)**: If both "Takeaway" and "Dine-in" are checked, customers must select a mode before ordering. If only one is checked, the system skips the selection screen and enters the menu directly in that mode, improving efficiency for single-purpose machines. 若同时勾选“打包”与“堂食”，顾客点击开始后必须先选择其中一种模式。若仅勾选其中一项，系统将自动跳过选择步骤，直接以该模式进入菜单页，提高特定场景机具的点餐效率。
![](/media/202604/2026-04-10_151048_9413100.467267275816326.png)
![](/media/202604/2026-04-10_151131_0039720.35918226203264125.png)

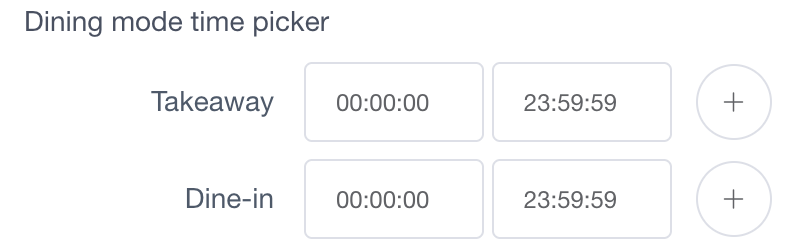

* **Dining mode time picker / 就餐模式时间段配置**
 * **Description (配置含义)**: Automatically controls the visibility of dining modes based on specific time periods. 按时间段自动控制就餐模式的可见性。
 * **Effect (具体表现)**: Different available times can be set for Takeaway and Dine-in. For example, if Dine-in is set to end at 22:00, the KIOSK screen will automatically hide the "Dine-in" option after 10 PM, forcing customers to select "Takeaway." 可为“打包”和“堂食”设定不同的可用时间。例如，设定堂食于 22:00 结束，超过晚上 10 点后，KIOSK 屏幕将自动隐藏“堂食”选项，强制顾客只能选择“打包”。
![](/media/202604/2026-04-10_151149_8452430.6417298561321686.png)

---

### 2. Frequently Asked Questions (FAQ) 常见问题

* **Q: After installing the KIOSK app, why does the screen ask for a "SecretKey" instead of an SN?** **Q：安装 KIOSK 应用后，为什么屏幕要求输入“密钥 (SecretKey)”而不是 SN 码？**
 * **A:** Due to hardware variations, the KIOSK app on certain device models may trigger the SecretKey authentication logic. In this case, please simply create a **"Pad"** device entry in the backend and use the generated SecretKey to log in. **A**：由于硬件机型的差异，部分设备运行 KIOSK 应用时可能会触发密钥验证逻辑。若遇到此情况，请直接在后台创建一个 **“Pad”** 类型的设备，并使用生成的密钥登录即可。

* **Q: Where can I get the download link if I can't find the app in the Store?** **Q：如果在商店找不到应用，从哪里获取下载链接？**
 * **A:** Please contact our support team or check the system notification area for the latest download URL. Both KIOSK and Pad applications can be installed via the link if the App Store is unavailable.[Click to Download](https://sgoss.amfuture.cn/download/app.apk) **A**：请联系技术支持团队或查看系统公告区域以获取最新的下载链接。若应用商店不可用，KIOSK 和 Pad 应用均可通过系统提供的链接进行安装下载。[点击下载](https://sgoss.amfuture.cn/download/app.apk)
